Understanding Drone Gimbals: The Key to Smooth Footage

Ever wondered how drones capture such incredibly stable footage, even when flying in challenging, windy conditions? The secret lies in a remarkable piece of technology called a gimbal. In this post, we'll explore how the drone gimbal works and why it is absolutely essential for professional drone videography.

What is a Drone Gimbal?

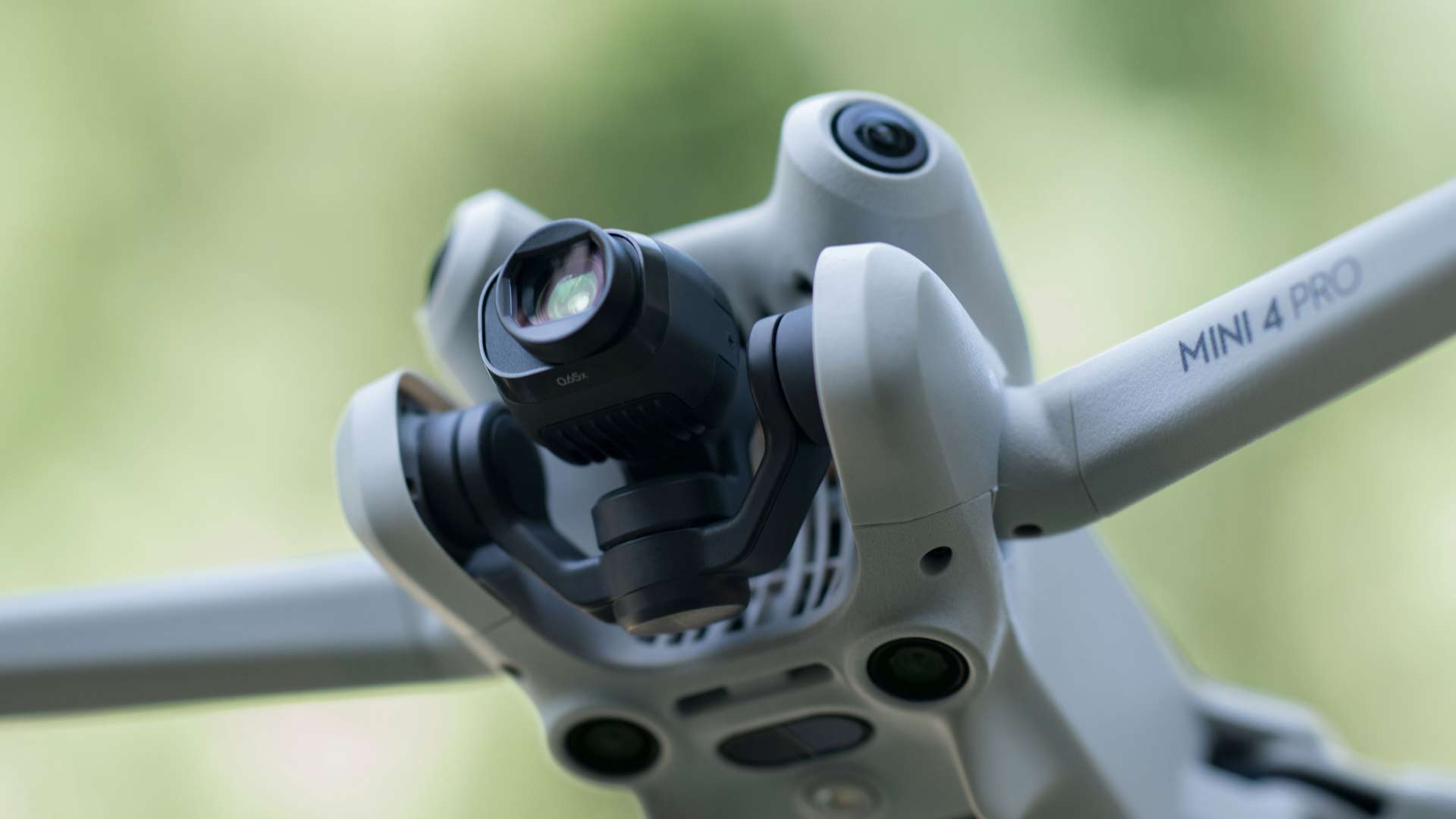

A drone gimbal is a pivoted support system that allows rotation of an object (in this case, a camera) around a single axis. Modern drone gimbals are typically 3-axis systems, meaning they can stabilise movement around three different axes:

- Roll (side-to-side tilting)
- Pitch (up and down tilting)
- Yaw (left and right panning)

Some lower-cost drones only have 2-axis gimbals, and use software to perform stabilisation. While this will deliver reasonable results in light winds, they will reach the limitations of their capabilities far quicker than larger drones with a higher wind rating and 3-axis gimbals.

The gimbal keeps the camera stable while the drone is moving or being buffeted by wind.

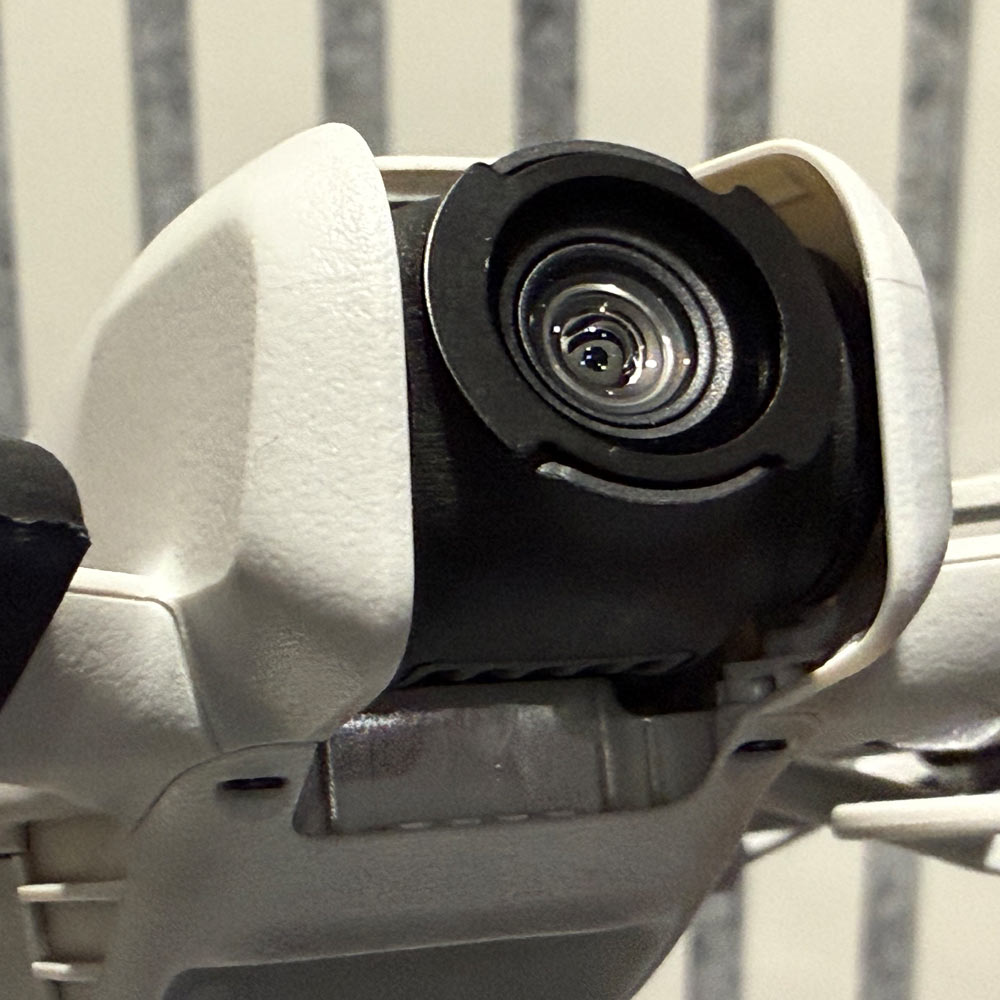

Smaller drones, such as the DJI Neo, will often include a 2-axis gimbal

How does a drone gimbal work?

At the heart of a drone gimbal is a sophisticated system that combines mechanical engineering with electronic sensors. Here's how it works:

1. Motion Detection: Built-in sensors (including gyroscopes and accelerometers) constantly monitor the drone's movement and orientation thousands of times per second.

2. Electronic Processing: A controller processes this sensor data in real-time, calculating exactly how the gimbal needs to move to counteract any unwanted motion.

3. Motor Response: Brushless motors respond instantly to these calculations, making micro-adjustments to keep the camera steady. These motors are incredibly precise, capable of movements as small as a fraction of a degree.

Why 2-axis software stabilisation is no match for 3-axis gimbal stabilisation

A 2-axis gimbal stabilises the pitch and roll axes physically while relying on software, like electronic image stabilisation (EIS), to compensate for yaw movements. This software uses data from sensors (e.g., gyroscopes and accelerometers) to detect and correct motion by cropping and repositioning video frames, analysing pixel shifts, and interpolating frames for smoother footage. However, this approach can result in resolution loss of quality, latency (e.g. glitches in video quality), and will often struggle with large or rapid movements, producing less natural results. In contrast, a 3-axis gimbal provides physical yaw stabilisation, delivering smoother, more professional-quality footage without the drawbacks of software reliance.

Why is a drone gimbal essential for filming?

1. Stability in Flight
Drones are constantly affected by various forces during flight - wind gusts, propeller vibrations, and the pilot's control inputs. Without a gimbal, these movements would translate directly to the camera, resulting in shaky, unusable footage.

2. Professional-Quality Results
The stability provided by a gimbal is what separates amateur-looking footage from professional-grade video. It allows for:

- Smooth panning movements
- Steady tracking shots
- Cinematic reveals
- Consistent horizon lines

3. Creative Freedom
With a stabilised camera, drone pilots can focus on creative shot composition without worrying about minor flight adjustments affecting the footage. This enables complex manoeuvres and dynamic shots that would be impossible without gimbal technology.

Maintaining a Drone's Gimbal

To ensure optimal performance, a drone's gimbal requires proper care:

1. The drone should always be transported with the gimbal cover attached. This avoids scratching the camera lens and/or damaging the gimbal mechanism
2. The gimbal needs to be regularly calibrated, which is done within the drone app
3. Gimbal motors must be kept clean and free from debris
4. You should never move the gimbal around when the drone is powered on, as you are effectively pushing against the motors
5. Any firmware updates should always be applied, to ensure that any updates to the gimbal software are applied.

How gimbals can impact different types of footage

The importance of a well-functioning gimbal cannot be overstated in professional drone videography. Whether you're capturing aerial footage for:

- Real estate showcases
- Wedding videos
- Construction site surveys
- Roof inspection
- Commercial advertisements

A properly stabilised camera makes the difference between amateur and professional-quality results.

Conclusion

The drone gimbal is a truly remarkable pieces of technology that has revolutionised drone videography. They transform potentially shaky, unstable footage into smooth, cinematic shots that can captivate audiences.

As drone technology continues to evolve, we're seeing even more advanced gimbal systems with enhanced features and capabilities. Yet the basic principle remains the same: providing that crucial stability that turns good footage into great footage. After all, even the highest resolution camera won't produce professional results without proper stabilisation.
